Gate Valves

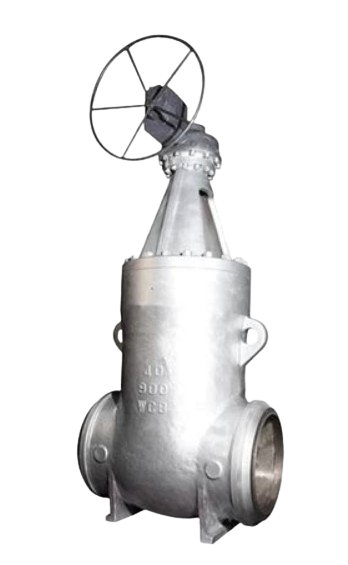

Pressure Seal Gate Valve

Through Conduit Gate Valve (API 600)

Parallel Slab Gate Valve

Forged Steel gate Valve

Types

AES has the capabilities to produce any type of ball valve a customer requires.

Our extensive line of gate valves as follows:

• Parallel Slide Gate Valves
• Pressure Seal Gate Valves
• Wedge Gate Valves
• Expanding Gate Valves
• Geothermal Gate Valves
• In addition, we offer gate valves that

In addition, we offer gate valves that meet:

• API 6D Pipeline Gate Valves
• API 6A - Wellhead Gates Valves
• Stem
• Rising Stem
• Non-Rising Stem
• Bonnet
• Screw
• Union
• Bolted Bonnet
• Pressure Seal Bonnet
• Flange
• AES

Stem

• Rising Stem
• Non-Rising Stem

Bonnet

• Screw
• Union
• Bolted Bonnet
• Pressure Seal Bonnet

Flange

AES offers gate valves that may have flanged ends which are drilled according

to pipeline compatible flange dimensional standards.

API 6A FC Type Manual Gate Valve

API 6A Expanding Gate Valve

API 6A Gate Valve (Flange End)

Size & Pressure Rating

Materials

• Body:Availableincarbonandalloy+stainless.
• Seat:Optionsofmetalseatedandsoftseated.

API 6A Gate Valves:

• WeoffersManualGateValves, ExpandinggateValves, FlangeEndGate
• ValvesandFC(Cameron)gateValves
• Size:SizeaccordingtoAPI from1-13/16to16
• WorkingPressure:2,000~20,000psi
• MaterialClass:AA,BB,CC,DD,EE,FF,HH
• WorkingTemperature:PU,LU
• Specification Level: PSL:1 to PSL-4
• Performance Requirement: PR-1 and PR-2
